Technical Requirements

Below you will find the necessary permissions that should be granted in the MT Manager API console to establish a connection between our system and your trading platform.

This document also outlines the technical requirements for the hardware and software necessary to install our frontend and backend components.

Whitelist of IPs​

When we receive the credentials for the connection, we will provide the list of our IPs that we will use to connect to your MT4/MT5 servers.

⚠️ If our frontend/backend is installed in Brokerpilot's cloud, please add IPs provided to your whitelist.

MT5 Connection and Permission Requirements​

To integrate with MT5, the following are the minimum requirements for our system to go live:

  • Export your server settings to a .json file (see Picture No. 3).
  • The export must include:
    • CommonConfig
    • TradeServer
    • OrdersRange
    • DealsRange

⚠️ Please ensure you remove any sensitive network configurations or IP addresses from the .json file before sending it to us.

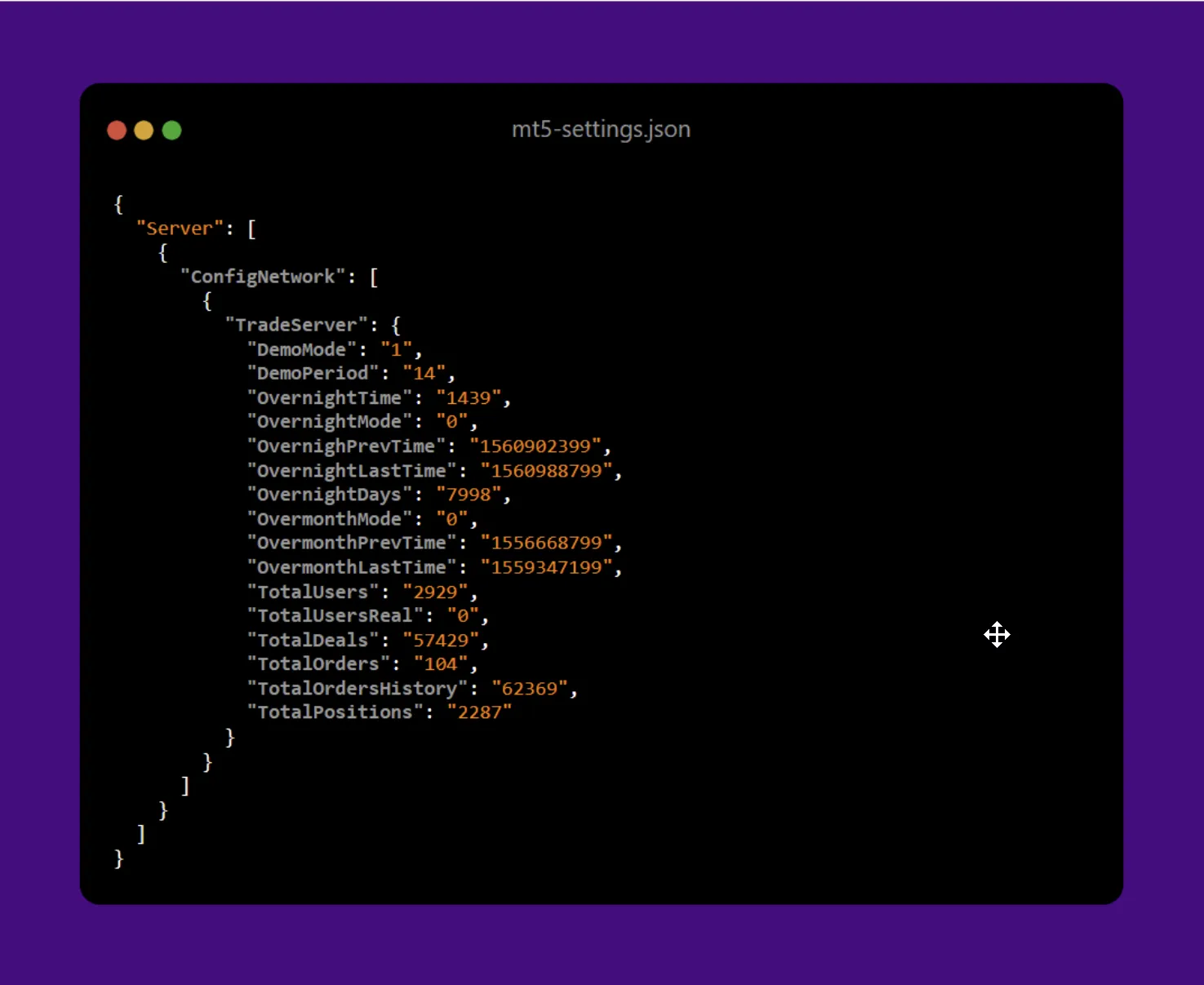

Example .json file settings​

server-mode

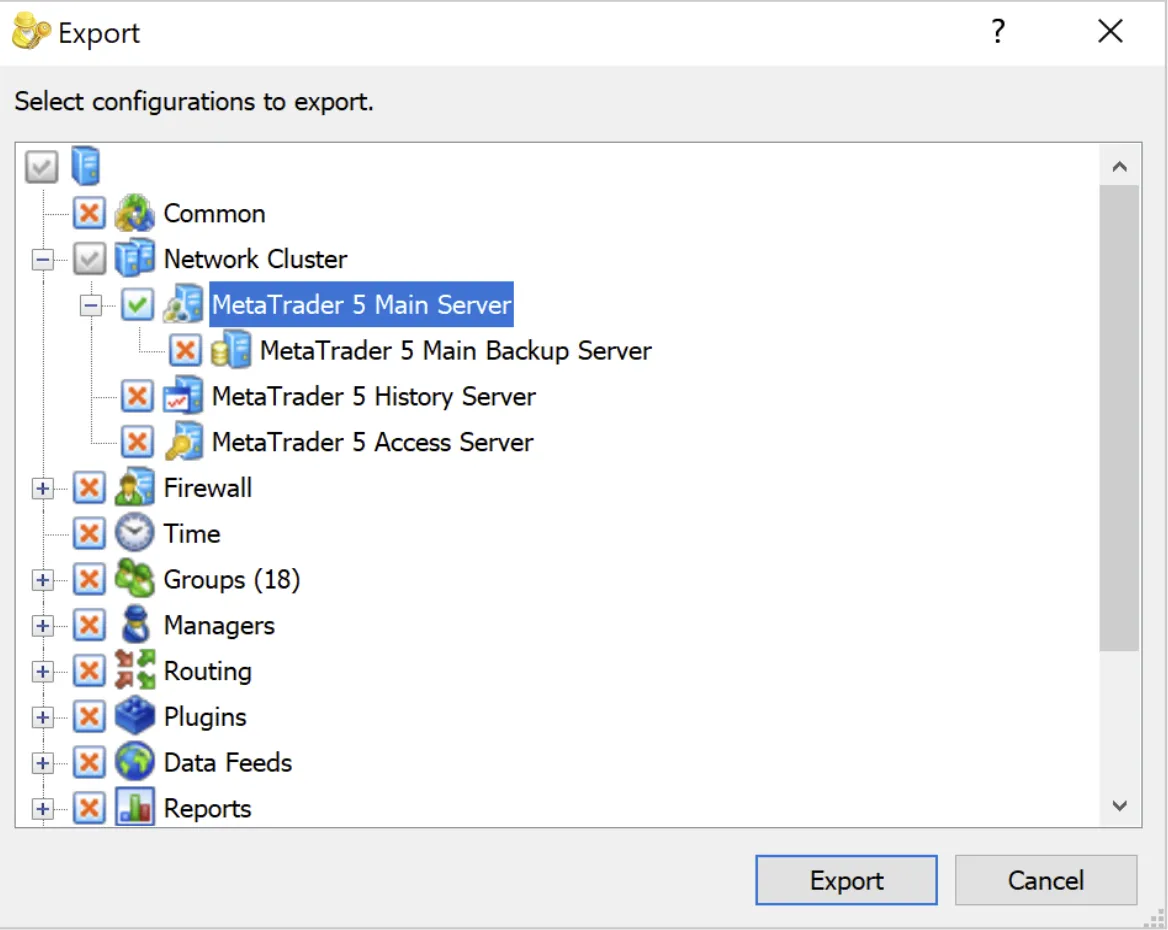

  • Picture No.2 – Export Settings

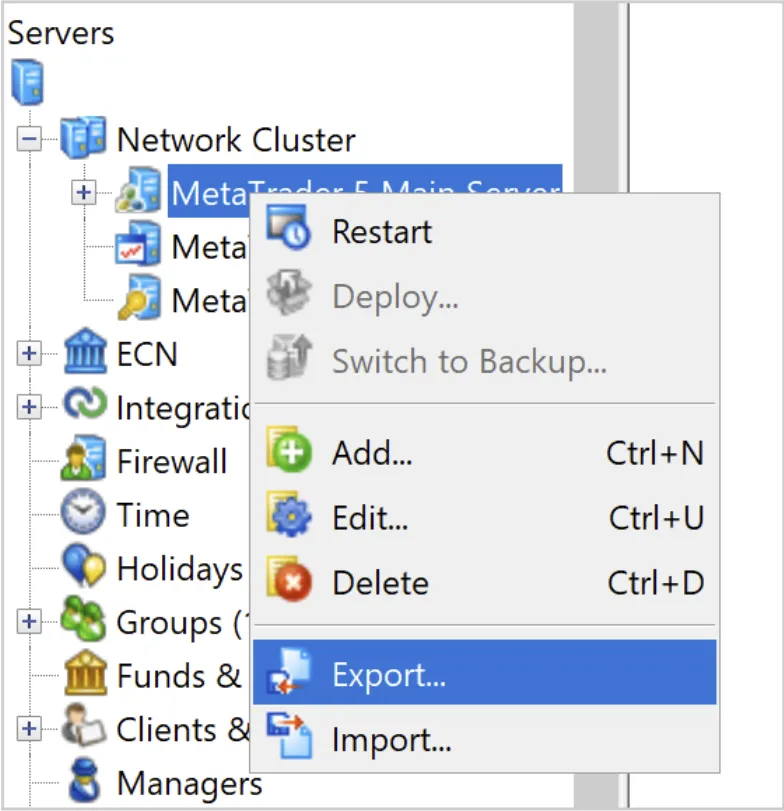

  • Picture No.3 – Context Menu for Export

Picture References​

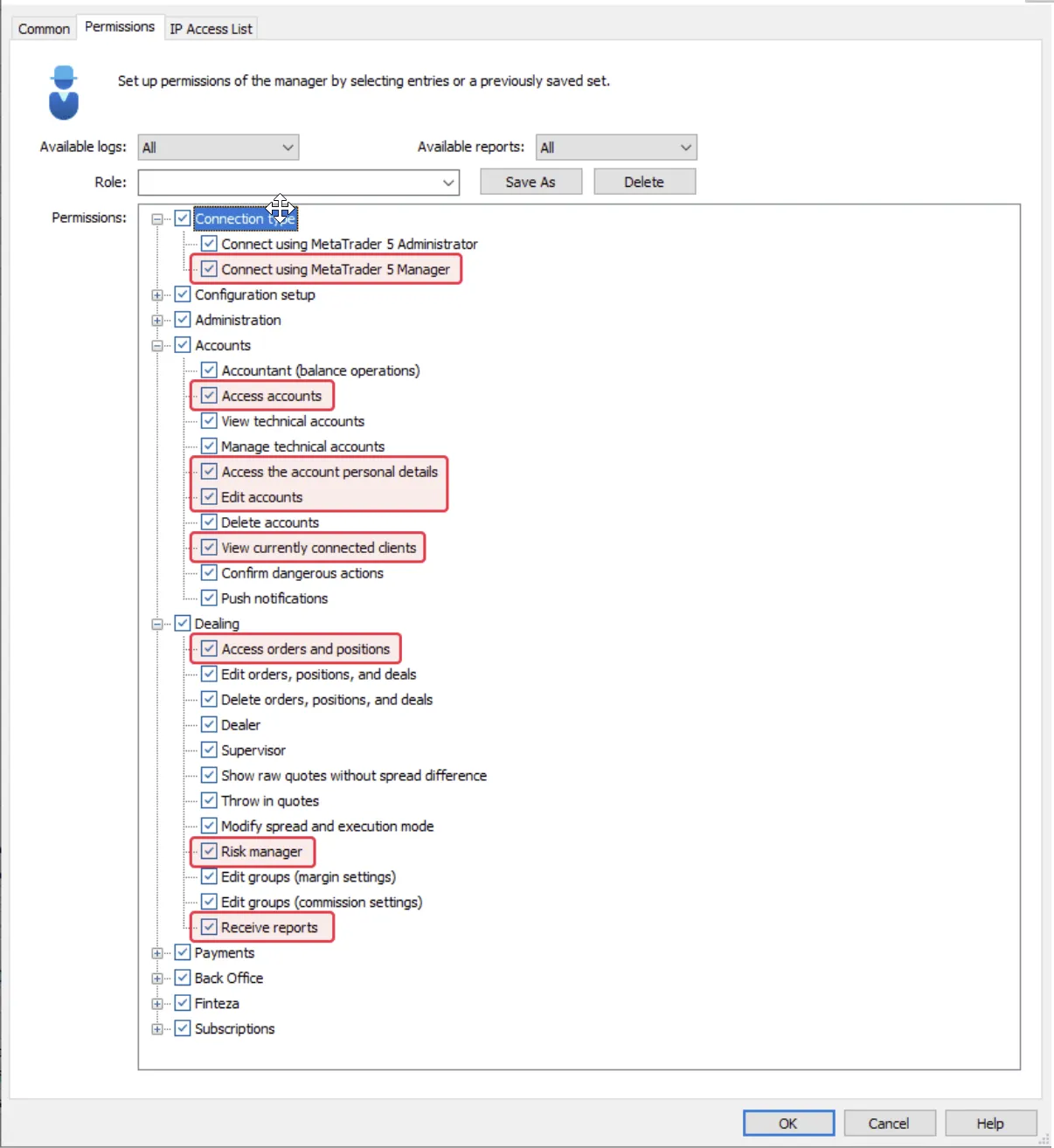

  • Picture No.4 – MT5 Permissions
    Required checkboxes are highlighted in red frames.

MT4 Connection Requirements​

For MT4:

  • Checking "Connections" is optional.

  • You will have access to groups of accounts that you specify in the Manager interface.

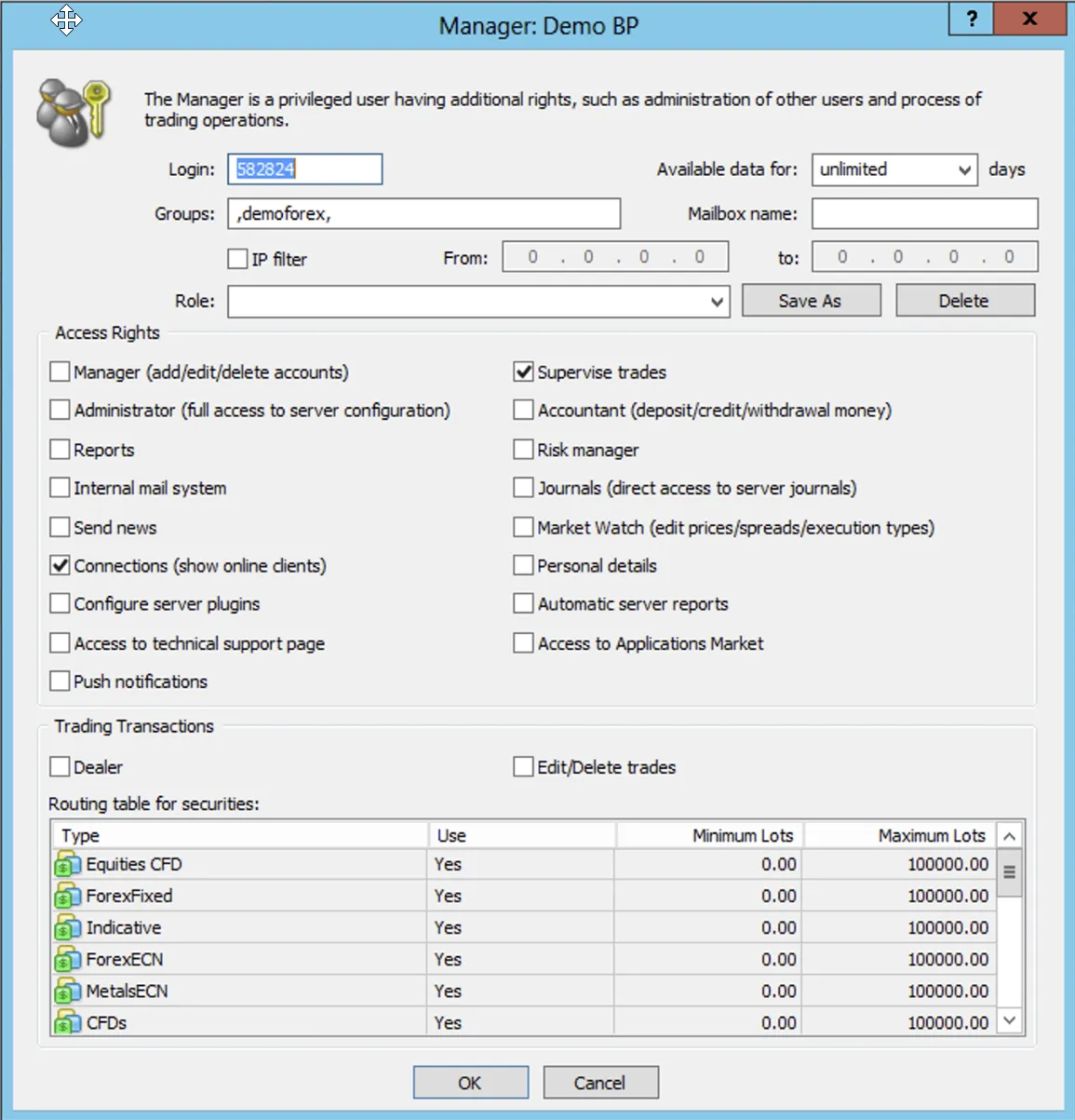

  • Picture No.5 – MT4 Permissions

Additional Permissions​

If you would like to utilize triggers that allow direct control of leverage and spreads inside the MT platforms, Admin permissions are required along with a few additional checkboxes.

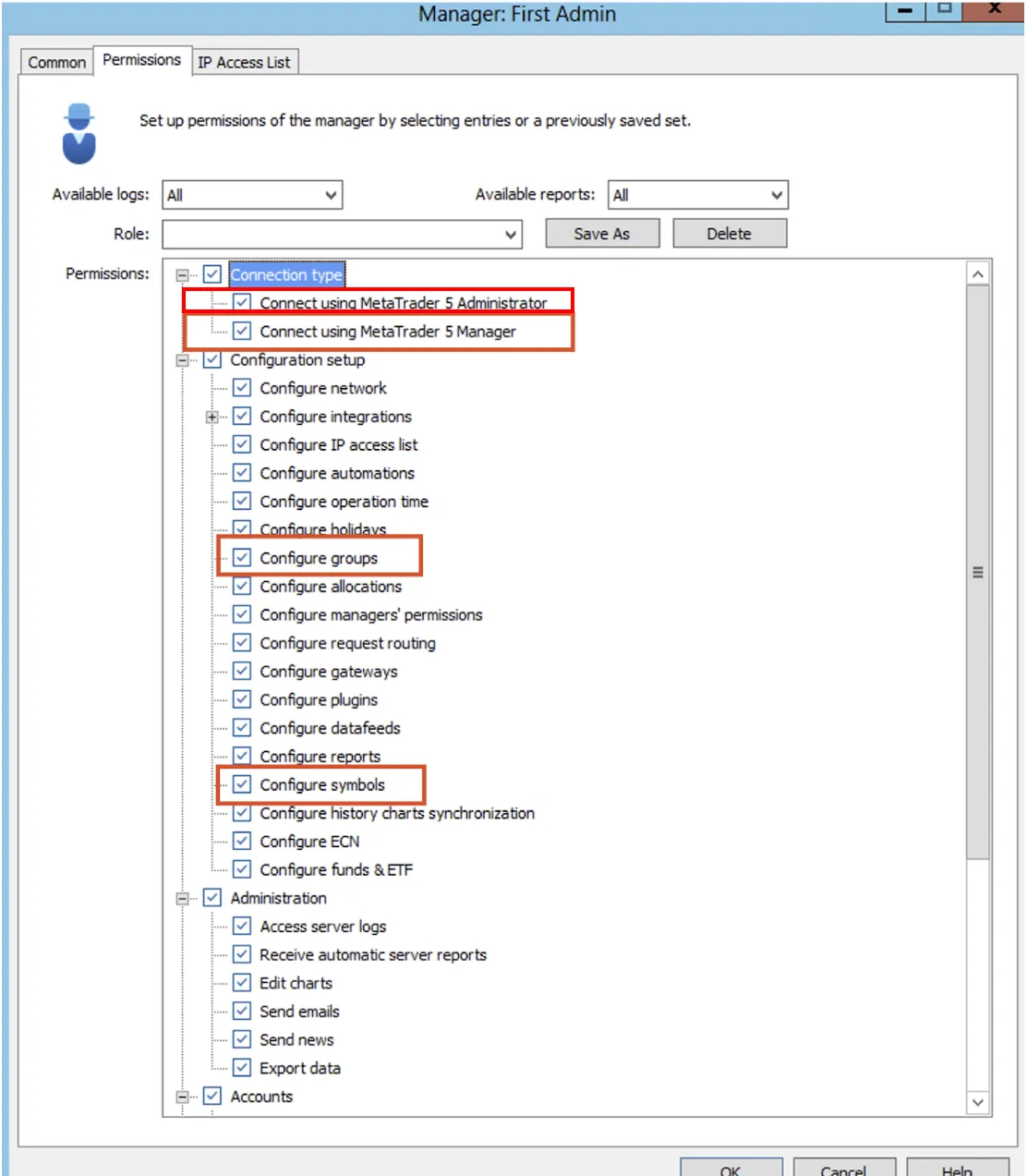

  • Picture No.5 – Additional Permissions
    Required checkboxes are highlighted in red frames.

Installation Information​

Your installation will use the SaaS model (Brokerpilot cloud-based deployment).

  • Both frontend and backend are hosted in the Indigosoft cloud.
  • Full IT infrastructure is provided, monitored, and maintained by the IndigoSoft team.

Infrastructure Includes​

  • Windows Server (for backend)
  • Linux Server (for frontend)
  • PostgreSQL Database (100 GB)

🛠️ You do not need to prepare or maintain any of the hardware or software required for the Brokerpilot installation—we take care of everything.
